HD5 CNCs have been discontinued to make room for the new line of HD6 machines. Don’t miss the chance to save on these excellent CNCs before they’re gone!
Built to handle larger 2.25hp routers with 3.5” barrel diameter (Makita or similar brand).

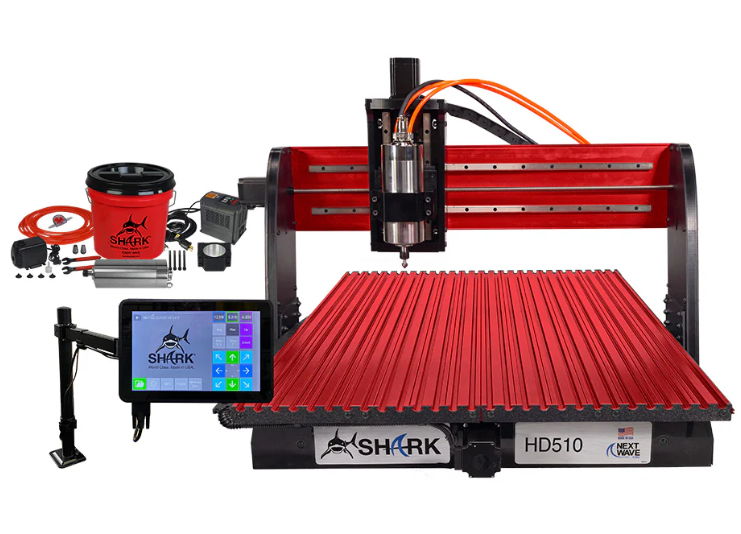

The Shark HD510 Plus is an upgraded version of the popular HD510 CNC. In addition to all of the standard features on the HD510, the Plus includes Next Wave CNC's latest technologically advanced 10.1" Touch Screen Display and a 2hp Water-Cooled Spindle.
The Android-based Touch Screen Display boasts features like:
- Multi Axis Homing
- Program restart anywhere inside the G-code
- Visual run time display for precise project monitoring
- On screen project display in real time
- Diagonal rapid movements
- On screen virtual zero point acceptance
- Higher processing speeds, reduces 3D carving times by up to 50%
- Internal file storage
- USB ports for direct connection of peripherals like keyboards, mouse, and flash drives
The Shark HD510 Plus features a 28” x 36” table, an extruded aluminum router mount for 3.5” barrel routers or Next Wave’s water-cooled spindle system, and robust linear gantry rails. It can be pendant or computer-controlled, and is perfect for projects such as carving plaques, signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics.
Shark HD CNCs stand out with an impressive 7” of vertical travel on the Z-axis—giving your projects the depth and versatility others simply can’t match. While most comparable CNCs top out at just 4” to 5” of vertical movement, the Shark delivers a full 7" without jumping to a higher price bracket like other premium machines.
Plus, all Shark HD CNCs come equipped with an adjustable gantry, allowing you to handle larger, taller workpieces. Even when raised, you’ll still get the full 7” of Z-axis travel and can accommodate materials up to 9” thick. No other CNC in its class offers this extra 2” of height adjustment, giving you unmatched flexibility for your creative or professional projects.
This CNC router offers 3D carving capability with a 3D model library included. It also offers two control options:
- Using the included Vectric VCarve Desktop Design Software, you create your project and transfer it to a USB drive which plugs directly into the LCD pendant. The convenient touch screen Pendant interface eliminates the need for a computer controlling the CNC in your shop.
- For more control interactivity, you can run the Shark HD510 Plus from your computer with the Ready2Control program. This lets you use the exclusive patented Virtual Zero Unlimited program. This program will adjust your design to fit curves and angles that would be impossible on other brands of machines. (Computer and flash drive not included).
Proudly made in the USA and carries a 2-year warranty.
